An offset toilet flange should be used only when absolutely necessary, as it is often seen as a last resort because it can cause sealing problems and challenges with toilet alignment. However, it can be a practical solution for shifting the toilet's position slightly without requiring extensive plumbing work, such as when installing a new toilet that needs to be adjusted due to the location of existing pipes. To ensure the best seal, opt for a high-quality offset flange with a rounded opening.
As a plumber, you’ve likely encountered misaligned drain pipes during toilet installations. When the drain doesn’t line up with the toilet’s final location, an offset toilet flange can provide a simple solution.
Let’s explore when and why to use an offset toilet flange and how it can streamline installations, particularly in tricky layouts or tight spaces.
What is an Offset Toilet Flange?
An offset toilet flange, or offset closet flange, shifts the toilet drain connection laterally by about one to two inches. This small adjustment is a game-changer when the drain pipe and toilet flange locations don’t align perfectly. It’s beneficial when installing a toilet on a finished or concrete floor with a misaligned drain or when dealing with an older cast iron pipe system.
Rather than cutting into the floor to reposition or reroute the drain pipe, an offset flange allows you to adjust the toilet’s position just enough for proper installation. The flange solvent welds either inside a 4-inch pipe or over a 3-inch pipe, making it a practical solution for correcting misalignments.

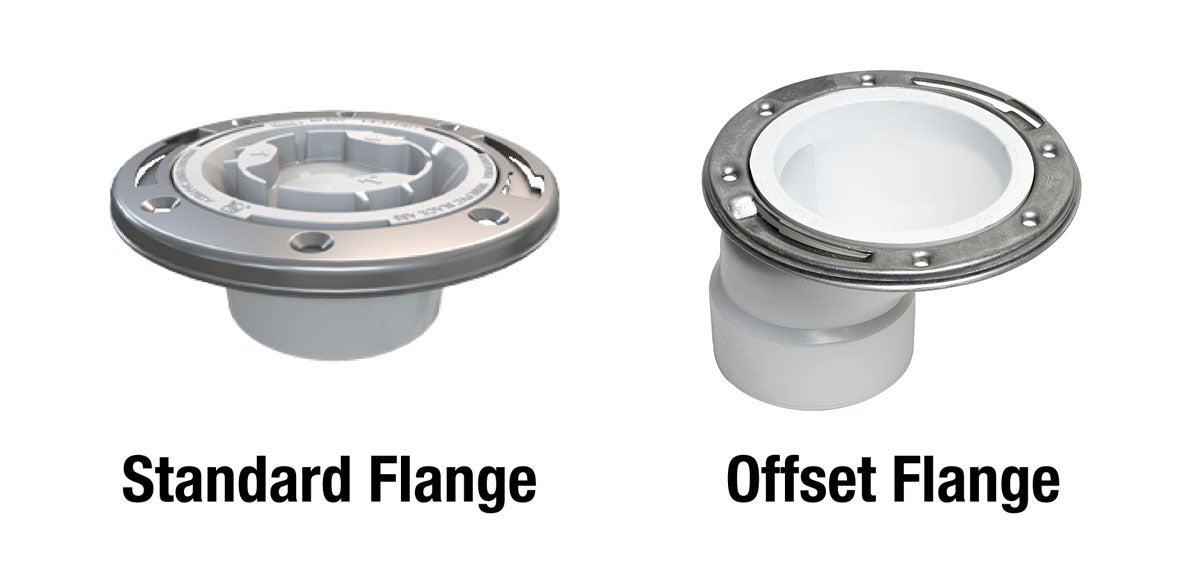

How Does an Offset Toilet Flange Compare to a Standard Flange?
Standard toilet flanges require precise alignment with the drain pipe, while offset flanges allow for lateral adjustment. This makes offset flanges especially useful in remodels or complex installations where structural constraints, like air ducts or nearby floor joists, make direct alignment difficult.
When Should You Use an Offset Toilet Flange?
Offset toilet flanges are especially useful in the following scenarios:
- Misaligned or off-center toilet drain: When measurements are off, and the drain doesn’t align with the toilet’s ideal placement, an offset flange can adjust the connection without requiring extensive pipework.
- Obstacles like floor joists: If a floor joist or other structural element obstructs the drain’s ideal location, an offset flange can shift the connection without compromising the structure’s integrity.
- Existing installations: In retrofit projects or remodels, where moving drain pipes would require significant work, an offset flange offers a practical, time-saving solution.
- New installations: When designing a new bathroom layout, an offset flange provides greater flexibility in toilet placement, particularly in tight or challenging spaces.
Benefits of Using an Offset Toilet Flange
Offset toilet flanges offer several key advantages:
- Flexibility: They make it easier to handle nonstandard placements, which is especially useful for tricky or unconventional installations. For example, the Oatey® Level Fit 45° Swivel Closet Flange lets you adjust the angle of the drain pipe to work around structural obstacles like floor joists or cross beams. Additionally, these flanges are sized at 3"x4", meaning they can fit over a 3-inch pipe or inside a 4-inch pipe—the standard sizes for toilet waste lines.
- Cost-effectiveness: By reducing the need for extensive plumbing work, offset flanges save time and money.
- Preservation of structural integrity: Offset flanges help maintain a building’s overall integrity by eliminating the need to alter structural elements like joists.
- Ease of use: Many modern offset flanges are designed for quick installation, featuring solvent weld connections and durable stainless steel rings for added longevity.
For detailed guidance on choosing the right toilet flange—offset or non-offset—check out Oatey’s comprehensive blog on toilet flange types.
How to Install an Offset Toilet Flange
Installing an offset toilet flange requires careful planning and precision to ensure a secure and leak-free connection. Whether you’re using a 4-inch or 3-inch offset toilet flange, the installation process follows similar steps:
Step 1: Assess layout and preparation: Before starting, assess the area to identify any obstacles or required adjustments. Mark where the flange will sit on the finished floor.
Step 2: Cutting and fitting: You need to cut a larger or differently shaped hole in the subfloor to accommodate the offset flange. Ensure the flange fits snugly over the drain pipe, whether it’s PVC pipe or ABS.
Step 3: Make sure the flange is level and securely fits at the required angle. Since the flange sits at an angle to the pipe, it must be aligned properly and sit flush with the floor.
Step 4: Create a solvent weld connection: Most offset flanges are designed to connect to PVC or ABS pipes using solvent welds. Be sure to clean both the pipe and the inside of the flange with a primer and solvent weld adhesive to ensure a secure, leak-free connection.
Step 5: Secure the flange: Once the flange is in place and the solvent weld has cured, use the provided slots or screw holes to anchor the flange to the floor with screws. For wood subfloors, use wood screws; for concrete floors, use concrete screws or anchors to secure the closet flange.
Step 6: Final adjustments: After securing the flange, carefully align the toilet bolts to ensure a snug fit. Set the toilet over the flange, ensuring the toilet flange is perfectly centered over the toilet drain hole. Use a wax seal or thick wax ring to ensure a tight seal with no leaks.
Be sure to refer to Oatey’s detailed step-by-step instructions for toilet flange installations.
Important: A common misconception about offset toilet flanges is that they reduce the flow of waste due to the lateral shift in the drainpipe. However, this isn’t the case. The offset flange maintains the full pipe diameter and ensures that there’s no restriction to the flow, just like a standard flange.
The only real offset flange problem you’ll face is the circumstance itself, which is more complex than normal. While installation may require extra care, especially when cutting into the subfloor or working with cast iron, an offset toilet flange is an invaluable tool. It allows you to complete the job right without compromising the system’s performance.
